Querying PUNCH Data#

A notebook guide to querying and loading PUNCH data using SunPy.

This notebook provides a guide on how to use tools to query PUNCH data from the VSO / SDAC using Python tools, and how to load and display this data using SunPy.

Load libraries

from sunpy.map import Map
from sunpy.net import Fido
from sunpy.net import attrs as a

from punchbowl.data.visualize import cmap_punch

Data querying#

With a range of dates and a PUNCH instrument in mind, we can begin querying data. Here we’ll consider data from the first hour of the first of June, and focus on data from WFI-2 only.

We can construct a query using the Fido tool, specifying search attributes:

time_range = a.Time('2025/06/01 00:00:00', '2025/06/01 01:00:00')
result = Fido.search(time_range, a.Instrument('WFI-2'))
result

Results from 1 Provider:

37 Results from the VSOClient:

VSOQueryResponseTable length=37

Start Time	End Time	Instrument	Wavelength	Provider	Physobs	Wavetype	Extent X	Extent Y	Extent Width	Extent Length	Extent Type	Size
			nm									Mibyte
Time	Time	str5	float64[2]	str10	str9	str7	str8	str8	str17	str16	str11	float64
2025-06-01 00:00:17.000	2025-06-01 00:00:41.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	19.6673	14.4731	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.51074
2025-06-01 00:00:17.000	2025-06-01 00:00:41.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	18.8726	14.7681	0.782222211360931	50.0622215270996	FAR_OFF_SUN	6.30371
2025-06-01 00:05:01.000	2025-06-01 00:05:52.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	10.0438	22.183	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.55762
2025-06-01 00:06:05.000	2025-06-01 00:06:56.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	10.0578	22.1783	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.57129
2025-06-01 00:07:07.000	2025-06-01 00:07:58.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	10.0585	22.1779	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.58203
2025-06-01 00:08:17.000	2025-06-01 00:08:41.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	10.06	22.178	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.58203
2025-06-01 00:08:17.000	2025-06-01 00:08:41.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	9.17825	22.026	0.782222211360931	50.0622215270996	FAR_OFF_SUN	6.27637
2025-06-01 00:13:00.000	2025-06-01 00:13:51.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-3.06025	24.0638	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.58496
2025-06-01 00:14:05.000	2025-06-01 00:14:56.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-3.04843	24.0668	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.59863
...	...	...	...	...	...	...	...	...	...	...	...	...
2025-06-01 00:46:05.000	2025-06-01 00:46:56.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-20.4159	-13.3741	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.64551
2025-06-01 00:47:07.000	2025-06-01 00:47:58.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-20.4151	-13.373	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.65332
2025-06-01 00:48:17.000	2025-06-01 00:48:41.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-20.4148	-13.3728	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.65625
2025-06-01 00:48:17.000	2025-06-01 00:48:41.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-19.6241	-13.7127	0.782222211360931	50.0622215270996	FAR_OFF_SUN	6.29004
2025-06-01 00:53:01.000	2025-06-01 00:53:52.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-11.3829	-21.5531	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.60156
2025-06-01 00:54:05.000	2025-06-01 00:54:56.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-11.395	-21.5479	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.61816
2025-06-01 00:55:07.000	2025-06-01 00:55:58.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-11.3954	-21.5469	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.62598
2025-06-01 00:56:17.000	2025-06-01 00:56:41.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-11.395	-21.5469	0.195555552840233	50.0622215270996	FAR_OFF_SUN	1.63184
2025-06-01 00:56:17.000	2025-06-01 00:56:41.000	WFI-2	530.0 .. 530.0	SDAC_PUNCH	intensity	visible	-10.5481	-21.4899	0.782222211360931	50.0622215270996	FAR_OFF_SUN	6.30371

This results in a table of available data products that match the search criteria. Next, let’s download the first file from this list of results:

files = Fido.fetch(result)

Files Downloaded:   0%|          | 0/37 [00:00<?, ?file/s]

PUNCH_L0_PP2_20250601000732_v0a.fits:   0%|          | 0.00/1.66M [00:00<?, ?B/s]

PUNCH_L0_PZ2_20250601000630_v0a.fits:   0%|          | 0.00/1.65M [00:00<?, ?B/s]

PUNCH_L0_PM2_20250601000526_v0a.fits:   0%|          | 0.00/1.63M [00:00<?, ?B/s]

PUNCH_L0_CR2_20250601000029_v0a.fits:   0%|          | 0.00/1.58M [00:00<?, ?B/s]

PUNCH_L0_PP2_20250601000732_v0a.fits:   2%|▏         | 40.2k/1.66M [00:00<00:04, 378kB/s]

PUNCH_L0_PZ2_20250601000630_v0a.fits:   2%|▏         | 40.2k/1.65M [00:00<00:04, 389kB/s]

PUNCH_L0_CR2_20250601000029_v0a.fits:   3%|▎         | 40.2k/1.58M [00:00<00:03, 395kB/s]

PUNCH_L0_PM2_20250601000526_v0a.fits:   2%|▏         | 40.2k/1.63M [00:00<00:04, 372kB/s]

PUNCH_L0_CR2_20250601000829_v0a.fits:   0%|          | 0.00/1.66M [00:00<?, ?B/s]

Files Downloaded:   3%|▎         | 1/37 [00:00<00:16,  2.13file/s]

PUNCH_L0_PP2_20250601001532_v0a.fits:   0%|          | 0.00/1.68M [00:00<?, ?B/s]

PUNCH_L0_PM2_20250601001326_v0a.fits:   0%|          | 0.00/1.66M [00:00<?, ?B/s]

PUNCH_L0_PZ2_20250601001430_v0a.fits:   0%|          | 0.00/1.68M [00:00<?, ?B/s]

PUNCH_L0_CR2_20250601000829_v0a.fits:  27%|██▋       | 454k/1.66M [00:00<00:00, 4.54MB/s]

Files Downloaded:  14%|█▎        | 5/37 [00:00<00:03, 10.66file/s]

PUNCH_L0_PP2_20250601001532_v0a.fits:  31%|███       | 523k/1.68M [00:00<00:00, 5.23MB/s]

PUNCH_L0_PM2_20250601001326_v0a.fits:  36%|███▌      | 592k/1.66M [00:00<00:00, 5.87MB/s]

PUNCH_L0_PZ2_20250601001430_v0a.fits:  21%|██▏       | 360k/1.68M [00:00<00:00, 3.53MB/s]

PUNCH_L0_CR2_20250601001629_v0a.fits:   0%|          | 0.00/1.69M [00:00<?, ?B/s]

PUNCH_L0_PM2_20250601002126_v0a.fits:   0%|          | 0.00/1.64M [00:00<?, ?B/s]

PUNCH_L0_PZ2_20250601002230_v0a.fits:   0%|          | 0.00/1.66M [00:00<?, ?B/s]

PUNCH_L0_PP2_20250601002332_v0a.fits:   0%|          | 0.00/1.67M [00:00<?, ?B/s]

PUNCH_L0_CR2_20250601001629_v0a.fits:  25%|██▍       | 416k/1.69M [00:00<00:00, 4.08MB/s]

Files Downloaded:  24%|██▍       | 9/37 [00:00<00:01, 14.36file/s]

PUNCH_L0_PM2_20250601002126_v0a.fits:   1%|▏         | 24.5k/1.64M [00:00<00:06, 241kB/s]

PUNCH_L0_CR2_20250601002429_v0a.fits:   0%|          | 0.00/1.67M [00:00<?, ?B/s]

PUNCH_L0_PZ2_20250601002230_v0a.fits:   2%|▏         | 40.2k/1.66M [00:00<00:04, 389kB/s]

PUNCH_L0_PP2_20250601002332_v0a.fits:   2%|▏         | 40.2k/1.67M [00:00<00:04, 390kB/s]

Files Downloaded:  32%|███▏      | 12/37 [00:00<00:01, 16.94file/s]

PUNCH_L0_CR2_20250601002429_v0a.fits:  21%|██        | 352k/1.67M [00:00<00:00, 3.51MB/s]

PUNCH_L0_PZ2_20250601003030_v0a.fits:   0%|          | 0.00/1.67M [00:00<?, ?B/s]

PUNCH_L0_CR2_20250601003229_v0a.fits:   0%|          | 0.00/1.68M [00:00<?, ?B/s]

PUNCH_L0_PM2_20250601002926_v0a.fits:   0%|          | 0.00/1.66M [00:00<?, ?B/s]

PUNCH_L0_PP2_20250601003132_v0a.fits:   0%|          | 0.00/1.67M [00:00<?, ?B/s]

PUNCH_L0_CR2_20250601003229_v0a.fits:  12%|█▏        | 200k/1.68M [00:00<00:00, 2.00MB/s]

PUNCH_L0_PZ2_20250601003030_v0a.fits:  14%|█▍        | 240k/1.67M [00:00<00:00, 2.31MB/s]

PUNCH_L0_PP2_20250601003132_v0a.fits:  10%|█         | 168k/1.67M [00:00<00:00, 1.68MB/s]

PUNCH_L0_PM2_20250601002926_v0a.fits:  12%|█▏        | 200k/1.66M [00:00<00:00, 1.96MB/s]

Files Downloaded:  41%|████      | 15/37 [00:01<00:01, 15.56file/s]

PUNCH_L0_PZ2_20250601003830_v0a.fits:   0%|          | 0.00/1.70M [00:00<?, ?B/s]

PUNCH_L0_PM2_20250601003726_v0a.fits:   0%|          | 0.00/1.68M [00:00<?, ?B/s]

PUNCH_L0_CR2_20250601004029_v0a.fits:   0%|          | 0.00/1.71M [00:00<?, ?B/s]

PUNCH_L0_PP2_20250601003932_v0a.fits:   0%|          | 0.00/1.70M [00:00<?, ?B/s]

PUNCH_L0_PZ2_20250601003830_v0a.fits:  33%|███▎      | 560k/1.70M [00:00<00:00, 5.45MB/s]

PUNCH_L0_CR2_20250601004029_v0a.fits:  22%|██▏       | 382k/1.71M [00:00<00:00, 3.82MB/s]

PUNCH_L0_PM2_20250601003726_v0a.fits:  38%|███▊      | 640k/1.68M [00:00<00:00, 6.19MB/s]

PUNCH_L0_PP2_20250601003932_v0a.fits:  15%|█▌        | 256k/1.70M [00:00<00:00, 2.50MB/s]

PUNCH_L0_PM2_20250601004526_v0a.fits:   0%|          | 0.00/1.71M [00:00<?, ?B/s]

Files Downloaded:  49%|████▊     | 18/37 [00:01<00:01, 14.95file/s]

PUNCH_L0_PZ2_20250601004630_v0a.fits:   0%|          | 0.00/1.73M [00:00<?, ?B/s]

PUNCH_L0_CR2_20250601004829_v0a.fits:   0%|          | 0.00/1.74M [00:00<?, ?B/s]

PUNCH_L0_PP2_20250601004732_v0a.fits:   0%|          | 0.00/1.73M [00:00<?, ?B/s]

PUNCH_L0_PM2_20250601004526_v0a.fits:  21%|██        | 352k/1.71M [00:00<00:00, 3.36MB/s]

Files Downloaded:  59%|█████▉    | 22/37 [00:01<00:00, 18.79file/s]

PUNCH_L0_PZ2_20250601004630_v0a.fits:  31%|███       | 528k/1.73M [00:00<00:00, 5.24MB/s]

PUNCH_L0_CR2_20250601004829_v0a.fits:  24%|██▍       | 424k/1.74M [00:00<00:00, 4.22MB/s]

PUNCH_L0_PP2_20250601004732_v0a.fits:  28%|██▊       | 480k/1.73M [00:00<00:00, 4.49MB/s]

PUNCH_L0_PM2_20250601005326_v0a.fits:   0%|          | 0.00/1.68M [00:00<?, ?B/s]

PUNCH_L0_PZ2_20250601005430_v0a.fits:   0%|          | 0.00/1.70M [00:00<?, ?B/s]

PUNCH_L0_PP2_20250601005532_v0a.fits:   0%|          | 0.00/1.70M [00:00<?, ?B/s]

PUNCH_L0_CR2_20250601005629_v0a.fits:   0%|          | 0.00/1.71M [00:00<?, ?B/s]

PUNCH_L0_PM2_20250601005326_v0a.fits:  34%|███▍      | 578k/1.68M [00:00<00:00, 5.78MB/s]

PUNCH_L0_PZ2_20250601005430_v0a.fits:  39%|███▉      | 664k/1.70M [00:00<00:00, 6.27MB/s]

Files Downloaded:  70%|███████   | 26/37 [00:01<00:00, 18.76file/s]

PUNCH_L0_PP2_20250601005532_v0a.fits:  30%|███       | 512k/1.70M [00:00<00:00, 5.11MB/s]

PUNCH_L0_CR2_20250601005629_v0a.fits:  24%|██▍       | 416k/1.71M [00:00<00:00, 4.16MB/s]

8/0 files failed to download. Please check `.errors` for details

Files Downloaded:  78%|███████▊  | 29/37 [00:01<00:00, 18.76file/s]2025-07-23 21:51:55 - parfive - INFO: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601000029_v0a.fits failed to download with exception
Download Failed: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601000029_v0a.fits with error <ClientResponse(https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601000029_v0a.fits) [404 Not Found]>
<CIMultiDictProxy('Date': 'Wed, 23 Jul 2025 21:51:54 GMT', 'Server': 'Apache', 'Strict-Transport-Security': 'max-age=31536000; includeSubDomains', 'Content-Length': '196', 'Connection': 'close', 'Content-Type': 'text/html; charset=iso-8859-1')>

2025-07-23 21:51:55 - parfive - INFO: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601000829_v0a.fits failed to download with exception
Download Failed: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601000829_v0a.fits with error <ClientResponse(https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601000829_v0a.fits) [404 Not Found]>
<CIMultiDictProxy('Date': 'Wed, 23 Jul 2025 21:51:54 GMT', 'Server': 'Apache', 'Strict-Transport-Security': 'max-age=31536000; includeSubDomains', 'Content-Length': '196', 'Connection': 'close', 'Content-Type': 'text/html; charset=iso-8859-1')>

2025-07-23 21:51:55 - parfive - INFO: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601001629_v0a.fits failed to download with exception
Download Failed: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601001629_v0a.fits with error <ClientResponse(https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601001629_v0a.fits) [404 Not Found]>
<CIMultiDictProxy('Date': 'Wed, 23 Jul 2025 21:51:54 GMT', 'Server': 'Apache', 'Strict-Transport-Security': 'max-age=31536000; includeSubDomains', 'Content-Length': '196', 'Connection': 'close', 'Content-Type': 'text/html; charset=iso-8859-1')>

2025-07-23 21:51:55 - parfive - INFO: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601002429_v0a.fits failed to download with exception
Download Failed: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601002429_v0a.fits with error <ClientResponse(https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601002429_v0a.fits) [404 Not Found]>
<CIMultiDictProxy('Date': 'Wed, 23 Jul 2025 21:51:54 GMT', 'Server': 'Apache', 'Strict-Transport-Security': 'max-age=31536000; includeSubDomains', 'Content-Length': '196', 'Connection': 'close', 'Content-Type': 'text/html; charset=iso-8859-1')>

2025-07-23 21:51:55 - parfive - INFO: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601003229_v0a.fits failed to download with exception
Download Failed: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601003229_v0a.fits with error <ClientResponse(https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601003229_v0a.fits) [404 Not Found]>
<CIMultiDictProxy('Date': 'Wed, 23 Jul 2025 21:51:55 GMT', 'Server': 'Apache', 'Strict-Transport-Security': 'max-age=31536000; includeSubDomains', 'Content-Length': '196', 'Connection': 'close', 'Content-Type': 'text/html; charset=iso-8859-1')>

2025-07-23 21:51:55 - parfive - INFO: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601004029_v0a.fits failed to download with exception
Download Failed: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601004029_v0a.fits with error <ClientResponse(https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601004029_v0a.fits) [404 Not Found]>
<CIMultiDictProxy('Date': 'Wed, 23 Jul 2025 21:51:55 GMT', 'Server': 'Apache', 'Strict-Transport-Security': 'max-age=31536000; includeSubDomains', 'Content-Length': '196', 'Connection': 'close', 'Content-Type': 'text/html; charset=iso-8859-1')>

2025-07-23 21:51:55 - parfive - INFO: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601004829_v0a.fits failed to download with exception
Download Failed: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601004829_v0a.fits with error <ClientResponse(https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601004829_v0a.fits) [404 Not Found]>
<CIMultiDictProxy('Date': 'Wed, 23 Jul 2025 21:51:55 GMT', 'Server': 'Apache', 'Strict-Transport-Security': 'max-age=31536000; includeSubDomains', 'Content-Length': '196', 'Connection': 'close', 'Content-Type': 'text/html; charset=iso-8859-1')>

2025-07-23 21:51:55 - parfive - INFO: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601005629_v0a.fits failed to download with exception
Download Failed: https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601005629_v0a.fits with error <ClientResponse(https://vso1.nascom.nasa.gov/data/punch/1/CR2/2025/06/01/PUNCH_L1_CR2_20250601005629_v0a.fits) [404 Not Found]>
<CIMultiDictProxy('Date': 'Wed, 23 Jul 2025 21:51:55 GMT', 'Server': 'Apache', 'Strict-Transport-Security': 'max-age=31536000; includeSubDomains', 'Content-Length': '196', 'Connection': 'close', 'Content-Type': 'text/html; charset=iso-8859-1')>

Files Downloaded:  78%|███████▊  | 29/37 [00:01<00:00, 16.73file/s]

This returns a list of paths to files that have been downloaded. Note that the Fido.fetch tool can specify a particular download directory for larger data searches. With that file downloaded, we can load it into a SunPy map object, and display it.

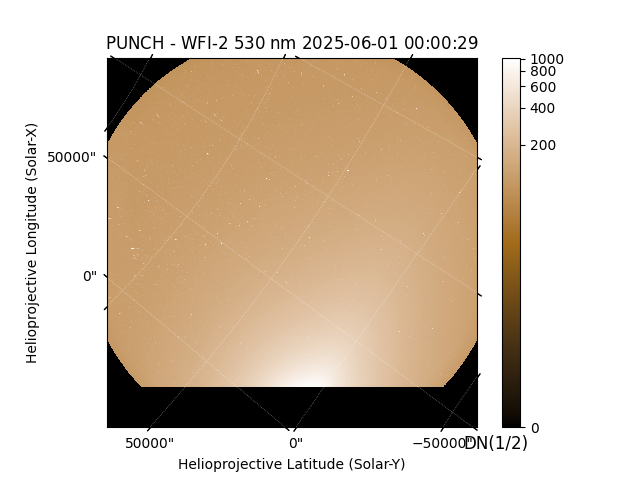

map = Map(files[0])
map.peek(cmap=cmap_punch)

$PUNCH - WFI-2 $530 \; \mathrm{nm}$ 2025-06-01 00:00:29$

And that’s it! From here the data is encapsulated into a SunPy map object, which supports that framework for plotting, coordinate transformations, etc. Note that in SunPy 7.0+, SunPy will use the PUNCH colormap natively, and will no longer need to be specified manually.

Of course this is just one path, you could always load the data using Astropy fits tools, load it into an NDCube, or any other FITS-compliant tool.

Total running time of the script: (0 minutes 9.862 seconds)
