Decoding square root encoded data

Data downlinked from the individual PUNCH spacecraft are usually square root encoded. This decoding is completed as part of the regular data processing pipeline for end-user data products. If using Level 0 manually, you may want to decode this data manually, as outlined here.

Data downlinked from the individual PUNCH spacecraft are usually square root encoded. This decoding is completed as part of the regular data processing pipeline for end-user data products. If using Level 0 manually, you may want to decode this data manually, as outlined here.

Load libraries

import astropy.units as u
import matplotlib.pyplot as plt
import numpy as np
from matplotlib.colors import LogNorm

from punchbowl.data import load_ndcube_from_fits
from punchbowl.data.sample import PUNCH_DK4
from punchbowl.data.visualize import cmap_punch
from punchbowl.level1.sqrt import decode_sqrt

Files Downloaded:   0%|          | 0/1 [00:00<?, ?file/s]

PUNCH_L0_DK4_20250414154536_v1.fits:   0%|          | 0.00/1.74M [00:00<?, ?B/s]

PUNCH_L0_DK4_20250414154536_v1.fits:   7%|▋         | 121k/1.74M [00:00<00:01, 1.18MB/s]

PUNCH_L0_DK4_20250414154536_v1.fits:  68%|██████▊   | 1.18M/1.74M [00:00<00:00, 6.44MB/s]


Files Downloaded: 100%|██████████| 1/1 [00:00<00:00,  2.68file/s]
Files Downloaded: 100%|██████████| 1/1 [00:00<00:00,  2.68file/s]

We can begin by loading sample data into an NDCube object. Here we’ll load a sample level 0 LED dark image from NFI. Note that if running with downloaded PUNCH data, replace the sample PUNCH_DK4 data below with a path pointing towards a FITS file.

cube = load_ndcube_from_fits(PUNCH_DK4)

/home/docs/checkouts/readthedocs.org/user_builds/punchbowl/envs/0.0.13/lib/python3.12/site-packages/astropy/io/fits/hdu/hdulist.py:1372: AstropyDeprecationWarning: The indent function is deprecated and may be removed in a future version.
        Use textwrap.indent() instead.
  f"uses zero-based indexing).\n{indent(str(exc))}\n"
/home/docs/checkouts/readthedocs.org/user_builds/punchbowl/envs/0.0.13/lib/python3.12/site-packages/astropy/io/fits/hdu/hdulist.py:1370: VerifyWarning: Error validating header for HDU #4 (note: Astropy uses zero-based indexing).
    Header size is not multiple of 2880: 1
There may be extra bytes after the last HDU or the file is corrupted.
  warnings.warn(
/home/docs/checkouts/readthedocs.org/user_builds/punchbowl/envs/0.0.13/lib/python3.12/site-packages/astropy/wcs/wcs.py:537: FITSFixedWarning: HGLT_OBS= / [deg] S/C heliographic latitude
a floating-point value was expected.
  wcsprm = _wcs.Wcsprm(
/home/docs/checkouts/readthedocs.org/user_builds/punchbowl/envs/0.0.13/lib/python3.12/site-packages/astropy/wcs/wcs.py:537: FITSFixedWarning: HGLN_OBS= / [deg] S/C heliographic longitude (B0)
a floating-point value was expected.
  wcsprm = _wcs.Wcsprm(
/home/docs/checkouts/readthedocs.org/user_builds/punchbowl/envs/0.0.13/lib/python3.12/site-packages/astropy/wcs/wcs.py:537: FITSFixedWarning: DSUN_OBS= / [m] S/C distance from Sun
a floating-point value was expected.
  wcsprm = _wcs.Wcsprm(

Note that for level 0 data the data is still square-root encoded, and will be unpacked in subsequent levels. You can manually decoded this data with the same pipeline function.

data_decoded = decode_sqrt(cube.data,
                      from_bits = 16,
                      to_bits = 11,
                      ccd_gain_right = 4.94,
                      ccd_gain_left = 4.89,
                      ccd_offset = 400,
                      ccd_read_noise = 17
                    )

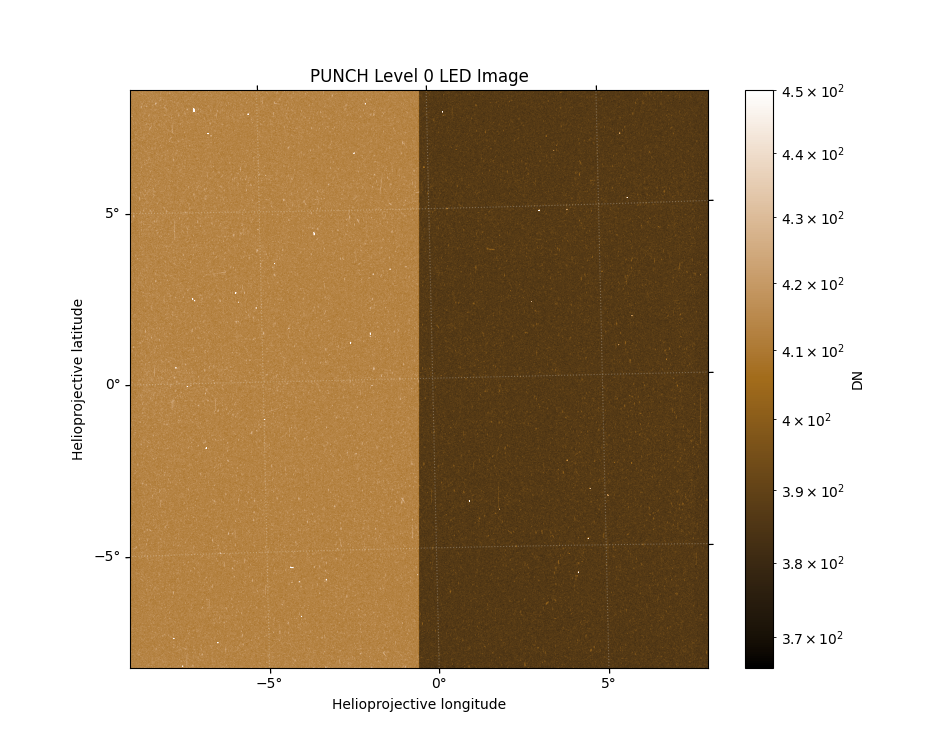

Now that we have this data square-root decoded, we can plot the image.

fig, ax = plt.subplots(figsize=(9.5, 7.5), subplot_kw={"projection":cube.wcs})

im = ax.imshow(data_decoded, cmap=cmap_punch, norm=LogNorm(vmax=450))

lon, lat = ax.coords
lat.set_major_formatter("dd")
lon.set_major_formatter("dd")
ax.set_facecolor("black")
ax.coords.grid(color="white", alpha=.25, ls="dotted")
ax.set_xlabel("Helioprojective longitude")
ax.set_ylabel("Helioprojective latitude")
ax.set_title("PUNCH Level 0 LED Image")
fig.colorbar(im, ax=ax, label="DN")
plt.show()
